Welch Allyn Connex Vital Signs Monitor 6000 Series, Welch Allyn Blood Pressure
26th Jun 2024

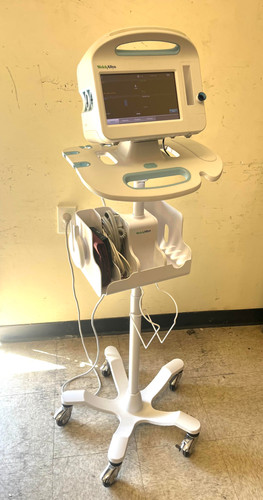

Med-Stat Medical recently reconditioned Welch Allyn Connex Vital Signs Monitor 6000 Series, a state-of-the-art device designed for comprehensive patient monitoring. This monitor integrates multiple parameters, ensuring accurate and efficient vital signs measurement.
Key Features:
Multi-Parameter Monitoring: Simultaneously measures blood pressure, temperature, pulse rate, SpO2, and respiration.
User-Friendly Interface: Intuitive touchscreen interface for easy navigation and operation.
Connectivity: Wireless connectivity options for integration with electronic medical records (EMR) systems.
How to Use the Welch Allyn Connex Vital Signs Monitor 6000 Series
1. Initial Setup
Power On: Connect the monitor to an AC power source or ensure the battery is fully charged. Press the power button to turn on the device.
Configuration: Follow the on-screen prompts to configure the device settings, including date, time, and units of measurement.
Connecting Accessories: Attach the necessary sensors (e.g., blood pressure cuff, SpO2 sensor, temperature probe) to the respective ports on the monitor.
2. Measuring Vital Signs
Blood Pressure:
Wrap the Welch Allyn Blood Pressure Cuff around the patient's upper arm.
Press the 'Start' button on the touchscreen.
Wait for the monitor to inflate the cuff and display the readings.
Temperature:
Use the temperature probe to measure the patient’s temperature.
Insert the probe into the oral, rectal, or axillary site as required.
Press the 'Temp' button to initiate the measurement.
Pulse Rate and SpO2:
Attach the SpO2 sensor to the patient’s finger.
Press the 'SpO2' button to begin monitoring.
The pulse rate and oxygen saturation levels will be displayed on the screen.
Respiration Rate:
Ensure the patient is calm and breathing normally.
The monitor will automatically detect and display the respiration rate.
3. Data Management
Reviewing Data: Access the 'History' tab to review past measurements and trends.
Transferring Data: Use the wireless connectivity feature to transfer patient data to the EMR system.
Printing Reports: Connect the monitor to a compatible printer to print vital signs reports for physical records.
Maintenance and Troubleshooting
Routine Maintenance
Cleaning: Regularly clean the monitor and accessories with a soft, damp cloth. Avoid using harsh chemicals.
Inspection: Frequently inspect cables, sensors, and connectors for signs of wear and tear.
Calibration: Ensure the monitor is calibrated according to the manufacturer’s recommendations to maintain accuracy.
Troubleshooting
Error Messages: Refer to the troubleshooting section of the manual for solutions to common error messages.
Technical Support: Please contact our service department at 301-345-8826 or service@medstatmedical.com
Always refer the manufacturer manual. A copy is available for you here: Welch Allyn Manual
Frequently Asked Questions (FAQ)
Q1: How do I change the unit of measurement on my Welch Allyn Connex Vital Signs Monitor?
A: Navigate to the settings menu and select the 'Units' option to change between metric and imperial units.
Q2: What should I do if the blood pressure monitor displays an error message?
A: Refer to the troubleshooting section of the manual for specific error codes and their solutions. If the issue persists, contact technical support.
Q3: How often should the Welch Allyn Vital Signs Monitor device be calibrated?
A: Calibration frequency depends on usage and regulatory requirements. Refer to the manual for detailed guidelines on calibration intervals.
Q4: What type of blood pressure cuffs do I use with the Welch Allyn Connex Vital Signs Monitor
A: Welch Allyn FlexiPort Blood Pressure Cuffs offer a true cuff standardization solution for your facility,
allowing you to use one cuff on most electronic and manual blood pressure devices. FlexiPort Cuffs
not only streamline workflows by making it easier for caregivers to find and change the right cuff,
but also reduce part numbers by up to 90 percent, simplifying inventory and ordering. These are available on our website. Welch Allyn FlexiPort Reusable Blood Pressure Cuff
Contact Us
For more information or to schedule a demonstration, please contact Med-Stat Medical at sales@medstatmedical.com
